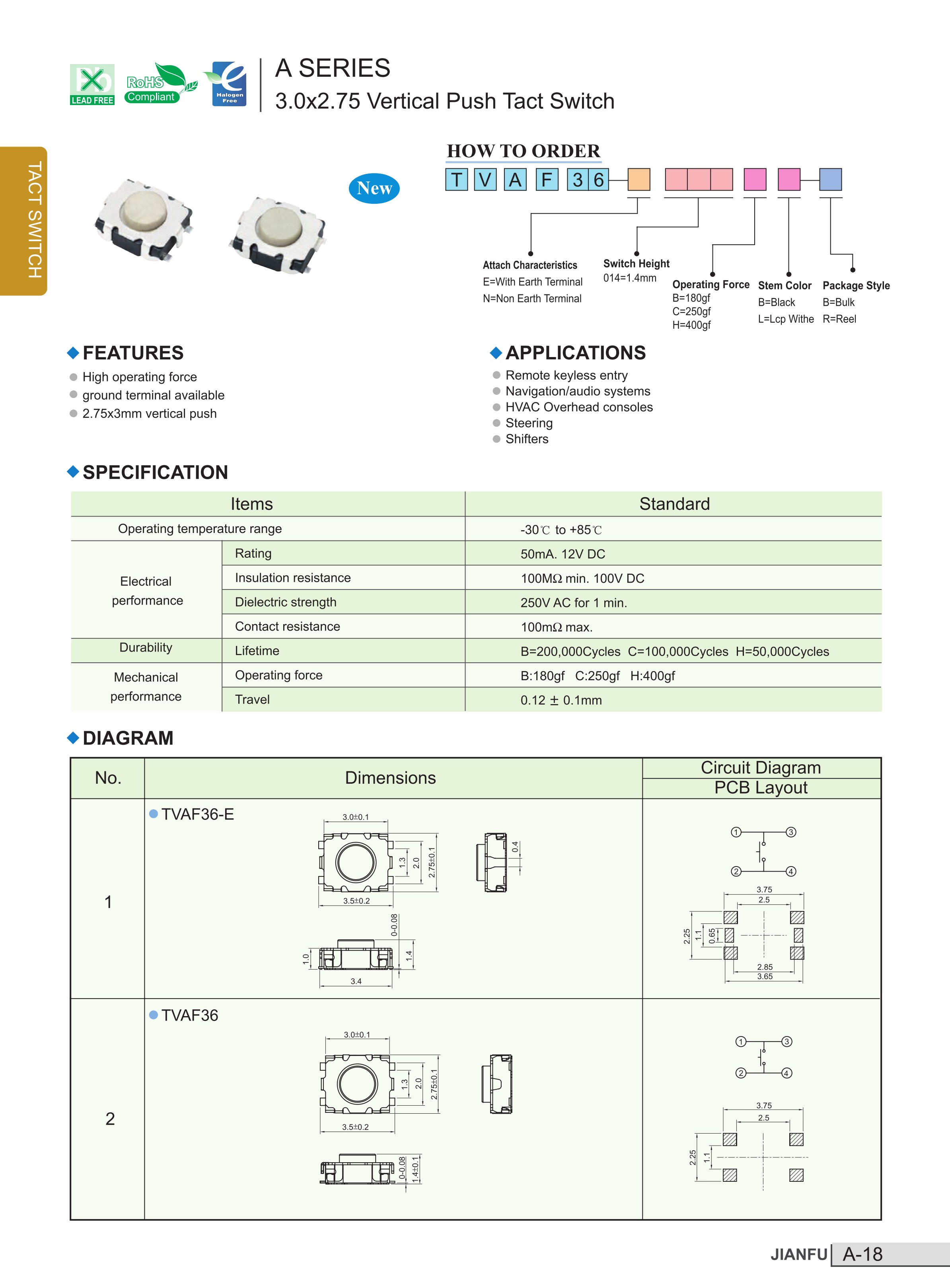

TVAF36-E
应用 ※ 移动、能源/工业、游戏、汽车
特点 ※ 重操作类型带有1.4mm高按钮和接地满足车内需求 ※ 带有1.4mm高按钮和接地 ※ 满足车内需求
产品详情
产品参数Parameters
| Items | Standard | |
|---|---|---|
| Operating temperature range | -30℃ to+85℃ | |
| Electrical performance | Rating | 50mA. 12V DC |
| Insulation resistance | 100MΩ min. 100V DC | |
| Dielectric strength | 250V AC for 1min. | |
| Contact resistance | 100mΩ max | |
| Durability | Lifetime | B=200,000Cycles C=100,000Cycles H=50,000Cycles |
| Mechanical performance | Operating force | B:180gf C:250gf H:400gf |
| Travel | 0.12±0.1mm | |
外形图Reference drawing
PCB焊接图P.C.B land dimension
电气图Circuit diagram
结构图Structural diagram
订货信息How to order
